Plus

Description

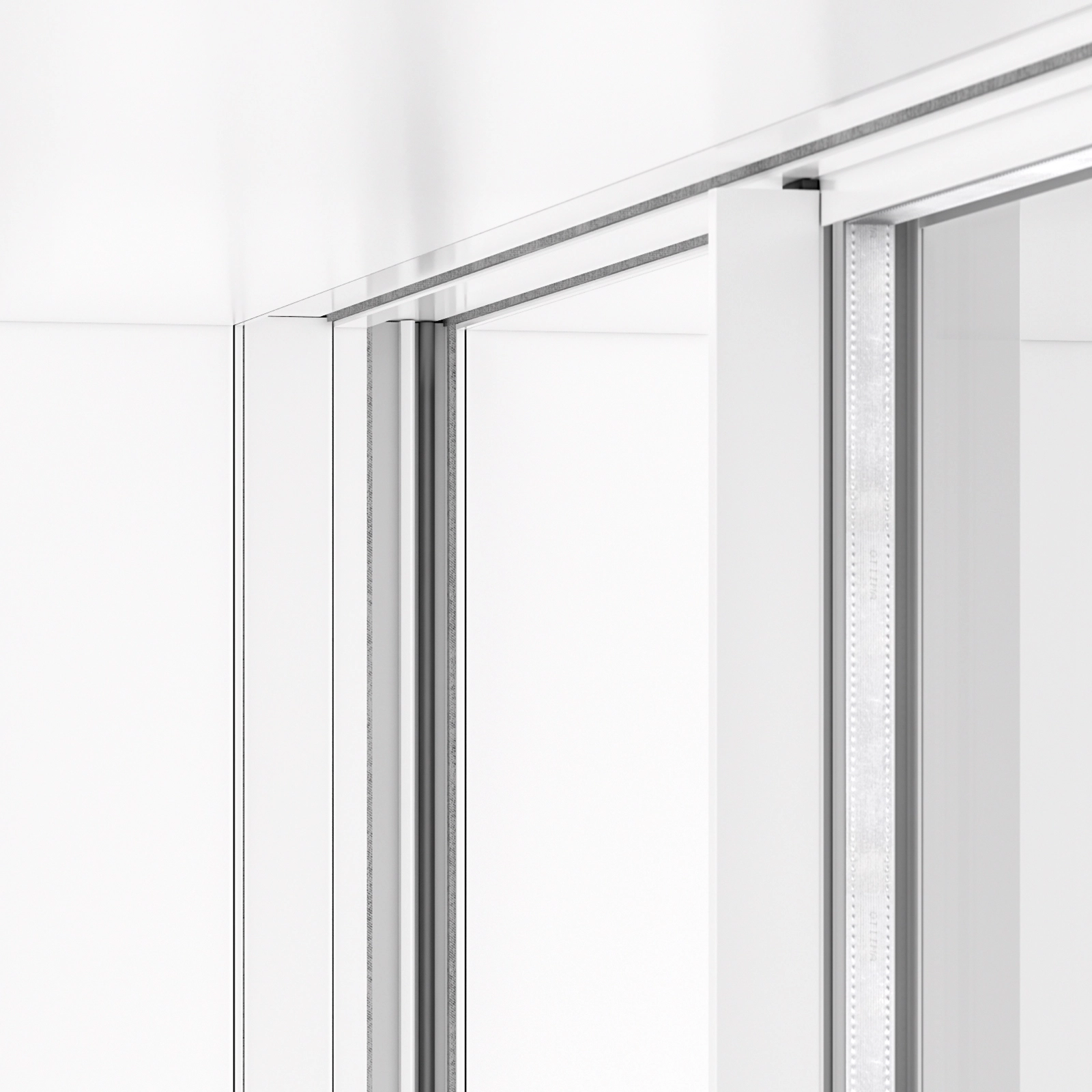

OTIIMA PLUS is the revamp of the classical minimal frame systems. The collected wisdom and experience have given rise to the most sophisticated version of a flush frame, guaranteeing high performance and homogeneous aesthetics throughout the window.

This system has been recognized several times with design awards, honoring its exceptional air and water performance in the market. Its highly aesthetic lines stand out in air permeability, resistance to wind loads, and superior stability.

Performance

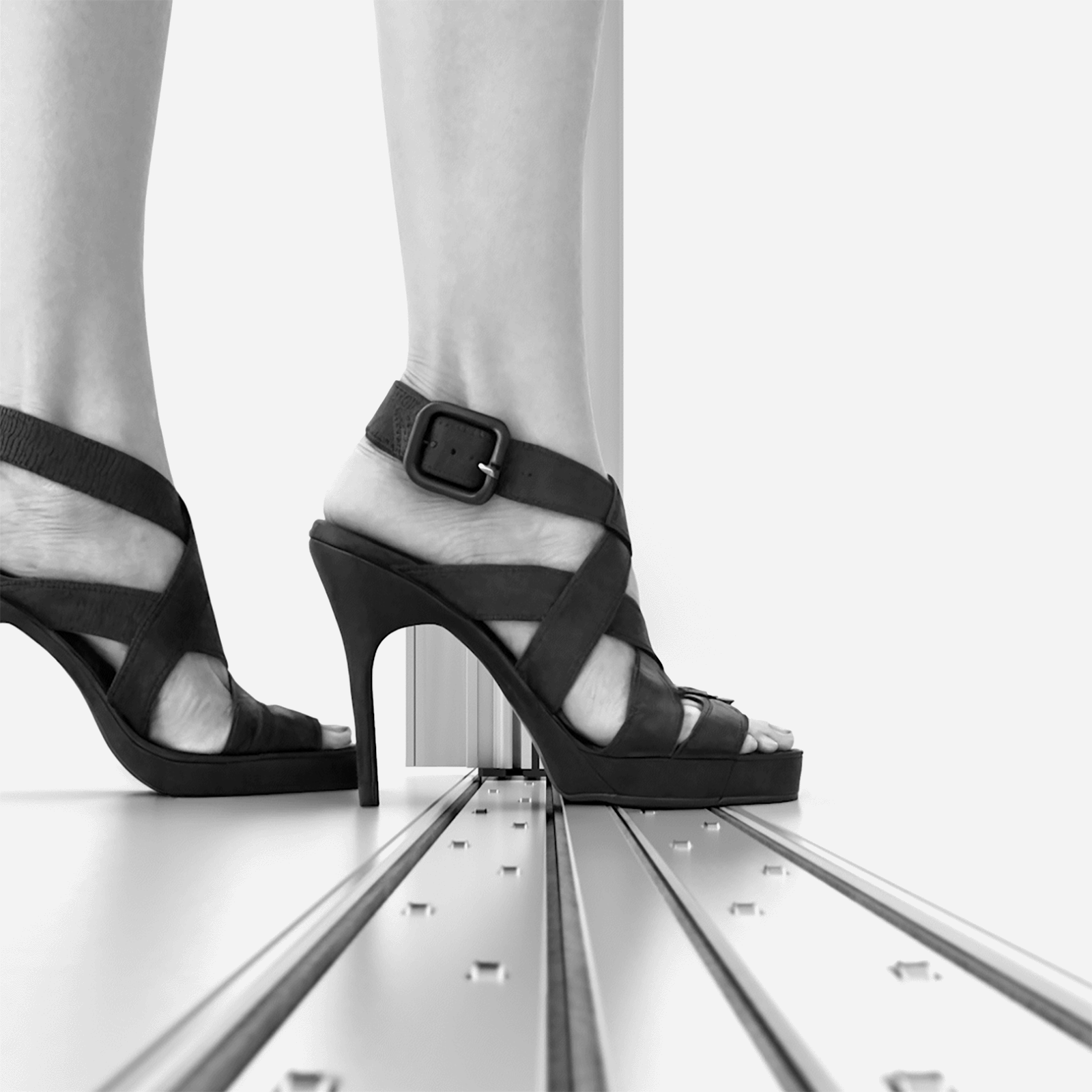

OTIIMA Plus captures all the advantages and versatility of a Classic and takes it one step further. Instead of recessed tracks 10mm (3/8”) below the finished floor as required for CLASSIC 54, Plus offers a flush head and sill track.

26, 38, and 54 Series

The Plus system is available in 26mm glass featuring insulated glass or non-insulated monolithic glass panels, 38mm insulated glass, ideal for warm to moderately colder climates, and 54mm, with triple-pane insulated glass panels specifically designed for colder climates, noise reduction, and impact performance.

Thermal transmittance

Uw Ug = 1,0 (38mm)
Uw Ug = 0.5 (54mm)

Up To

Uw 1.58 W / m2 K (38mm)
Uw 1.07 W / m2 K (54mm)

Watertightness

ISO EN 12208 + ISO EN 1027

E1200 (54mm)

(4 classes above 9A) 1

Air permeability

ISO EN 12207 + ISO EN 1026

Class 4

(600 Pa or 119 Km/h) ¹ ²

Wind resistance

ISO EN 12210 + ISO EN 12211

Class C5

(in 6 possible classes) ²

Impact resistance

ISO EN 12600 + ISO EN 1630

Class 5

(2000 Pa or 200 Km/h)

Sound insulation

Rw: 42 db (up to)

Security

ISO EN 1628 + ISO EN 1629 + ISO EN 1630

RC2: (WK2)

Calculation Module 4.60 x 3.00 to Thermal transmittance

ISO EN 10077-1 + ISO EN 10077-2 (up to)

Opening Typologies

Hidden Pocket

Two Directions Corner

Standard Sliding

¹ Plus 54 2415 x 2430 mm
² Plus 38 2400 x 2290 mm
³ Value reached with hidden lock
