Fusion

Description

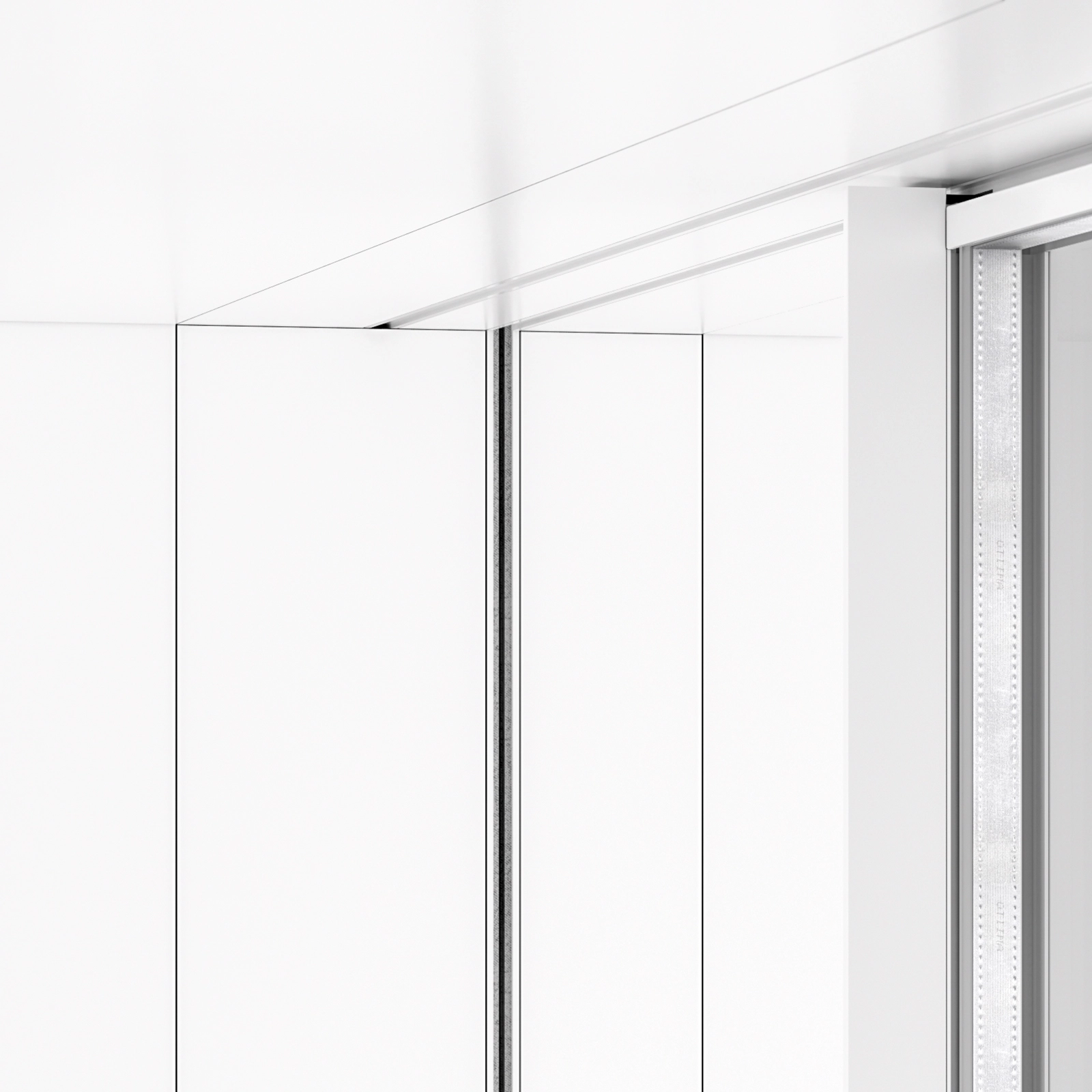

The FUSION’s exclusive design features a completely redefined, minimalistic frame system by providing the appearance of “floating” glass door panels within the architectural finishes.

Performance

This system provides superior thermal and structural performance. Fusion incorporates a gutter capable of draining a large amount of rainwater, even in extreme situations. It has achieved exceptional results in leakage tests, with an e165O class rating (7 classes above Class 9A) according to EN 12208 + ISO 127.

38 and 54 series

The FUSION system supports 38mm insulated glass and 54mm, accommodating triple glazing for higher thermal performance.

Thermal transmittance

Ug = 1.0 (38mm)
Ug = 0.5 (54mm)

Up To

Uw 1.61 W / m2 K (38mm)
Uw 1.08 W / m2 K (54mm)

Watertightness

ISO EN 12208 + ISO EN 1027

up to E1650 (38 mm)

Air permeability

ISO EN 12207 + ISO EN 1026

up to Class 4 (38 mm)

Wind resistance

ISO EN 12210 + ISO EN 12211

Class C5 (38 mm)

Acoustic insulation

ISO EN 10140 + ISO EN 717

up to 40 db

Resistance class

ISO EN 1628 + ISO EN 1629 + ISO EN 1630

RC2: (WK2) *1

Calculation Module 4.60 x 3.00 to Thermal Transmittance

ISO EN 10077-1 + ISO EN 10077-2 (up to)

Opening Typologies

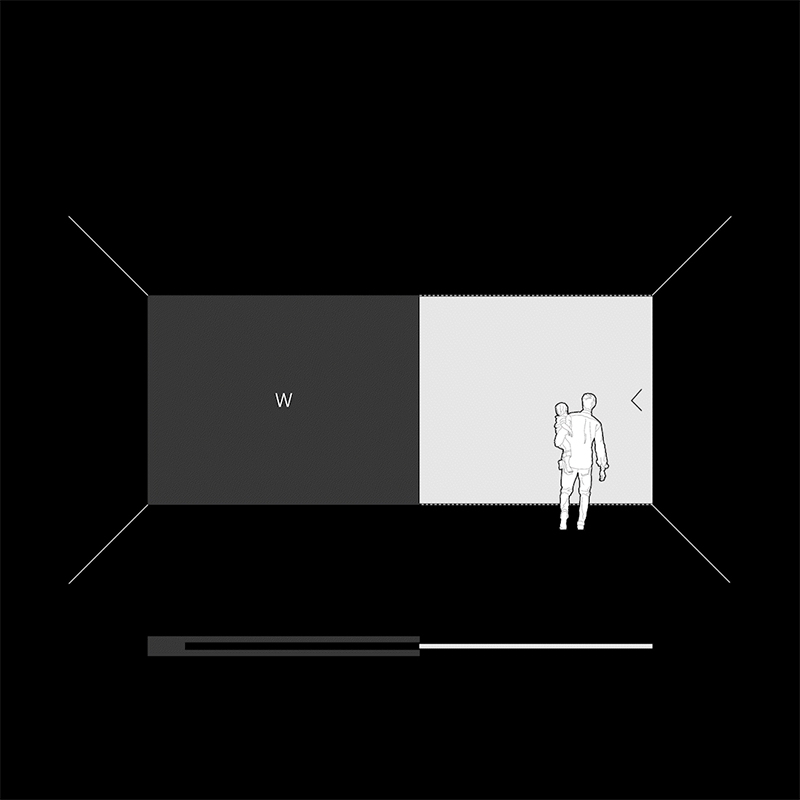

Hidden Pocket

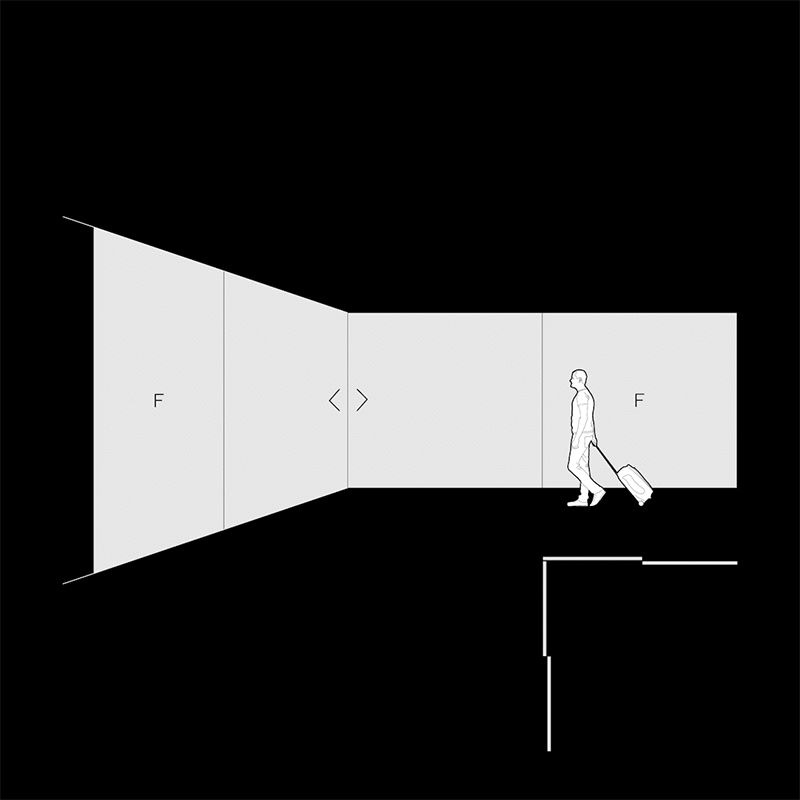

Two Directions Corner

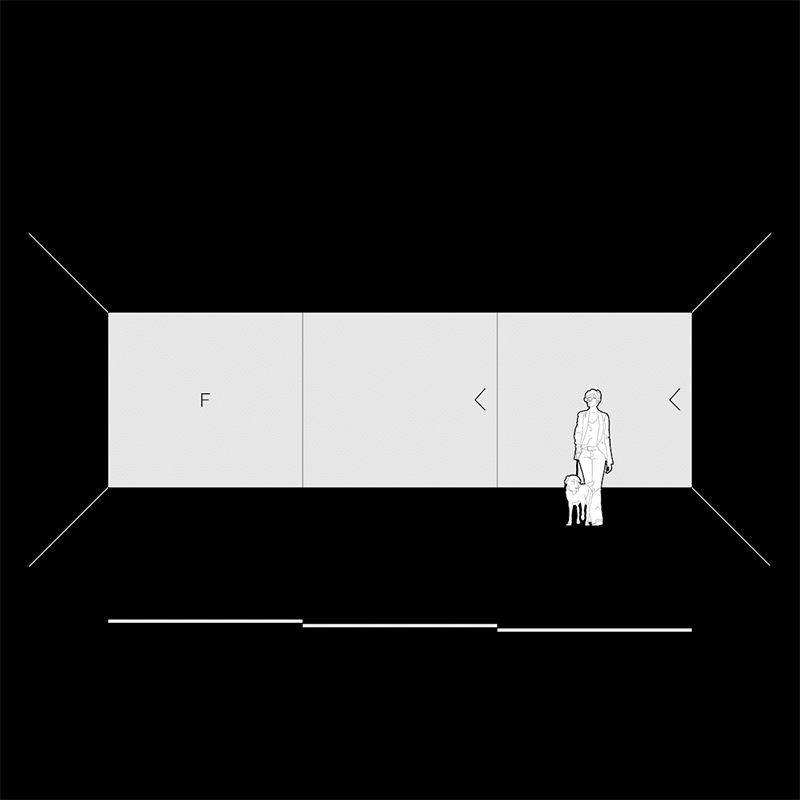

Standard Sliding

¹ The values achieved correspond to the results of the physical tests performed in a certified laboratory. These values may be further optimized through finite element structural analysis, by optimizing the glass composition and selecting a higher-inertia interlock in accordance with the project requirements.
