Classic

Description

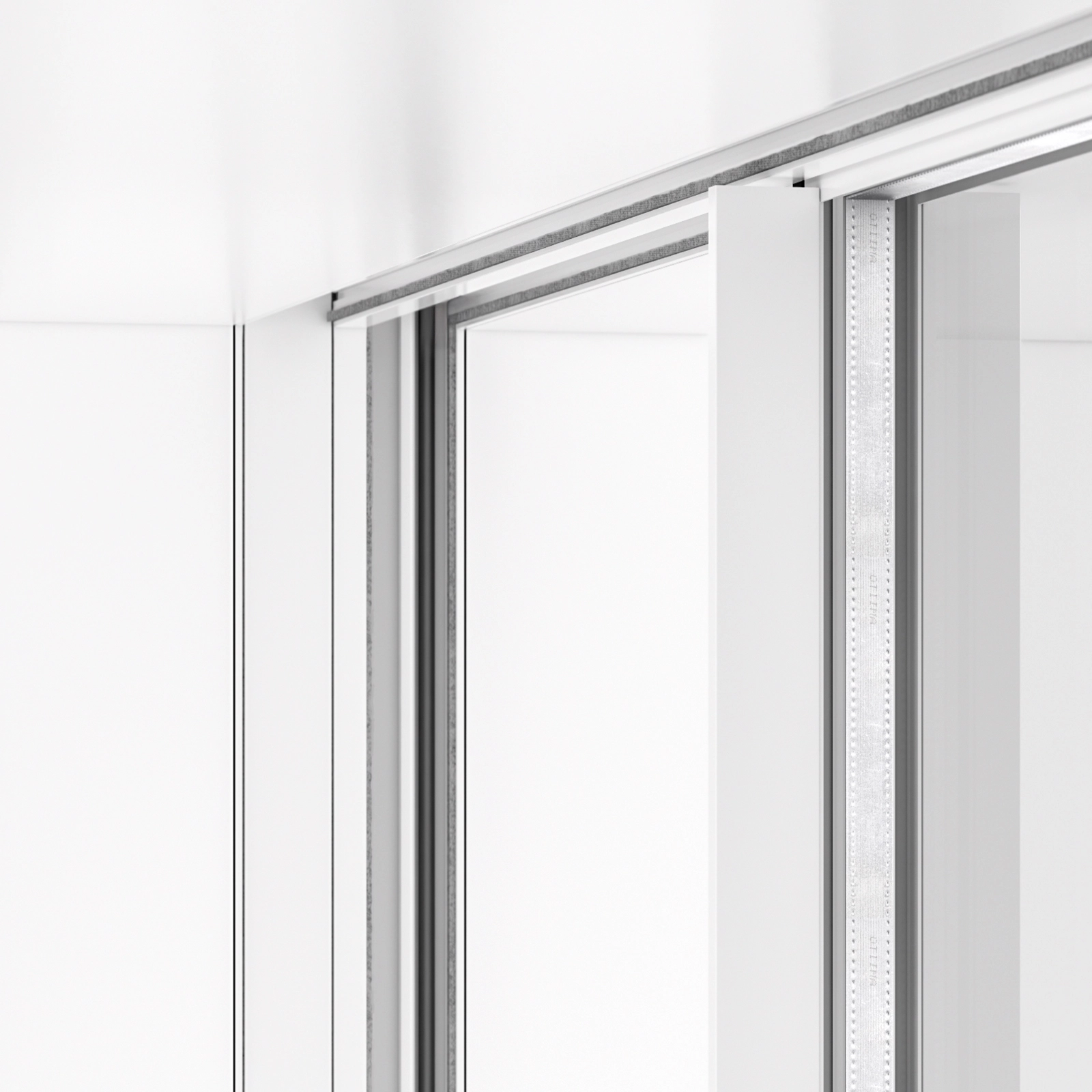

OTIIMA Classic with a twist is the brand’s original take on minimalist window systems, offering a balance between functionality and elegance. Defined by its slim 20mm vertical interlock, the system enables expansive glazed surfaces and maintains a clean, understated aesthetic.

Performance

Beyond its visual appeal, the Classic system is engineered for performance. It ensures excellent water tightness, air permeability, wind-load resistance, and thermal insulation. The use of toughened glass enhances durability and allows for large panes, while an exclusive sliding mechanism with stainless-steel bearings offers effortless manual operation.

16, 38 and 54 series

The Classic system is available in three versions: 16 Classic, ideal for interior use with monolithic glass panels up to 6 m²; 38 Classic, suited for warm to moderately cold climates with 38mm insulated or triple-pane glass; and 54 Classic, optimized for cold climates with 54mm triple-pane glass and enhanced thermal performance.

Thermal transmittance

Ug = 1.0 (38mm)
Uw = 0.5 (54mm)

Up To

Uw 1.55 W / m2 K (38mm)
Uw 1.07 W / m2 K (54mm)

Watertightness

ISO EN 12208 + ISO EN 1027

up to Class 8A (38 mm)
up to Class 8A (54mm)

Air permeability

ISO EN 12207 + ISO en 1026

up to Class 3 (38 mm)
up to Class 4 (54mm)

Wind resistance

ISO EN 12210 + ISO EN 12211

Class B3 (38 mm)
Class C4 (54mm)

Acoustic insulation

ISO EN 10140 + ISO EN 717

up to 38 db

Resistance class

ISO EN 1627

RC2: (WK2) *1

Calculation Mododule 4.60 x 3.00 to Thermal Transmittance

ISO EN 10077-1 + ISO EN 10077-2 (up to)

Opening Typologies

Hidden Pocket

Two Directions Corner

Standard Sliding

¹The values achieved correspond to the results of the physical tests performed in a certified laboratory. These values may be further optimized through finite element structural analysis, by optimizing the glass composition and selecting a higher-inertia interlock in accordance with the project requirements.
