Unveiling the Beauty and Functionality of Motorized Minimal Frame Windows

Imagine a home bathed in natural light, where the window seamlessly dissolves, creating a true indoor-outdoor experience. This concept, once relegated to the pages of architectural magazines, is becoming a reality with the rise of minimal frame window systems.

Minimal Frame Windows go beyond simply creating a sleek look. These motorized marvels boast thin profiles, maximizing the glazed area and transforming the traditional window into a transparent wall. The result? Breathtaking panoramic views and abundant natural light are key elements in biophilic design that architects increasingly incorporate. This achievement allows architects to prioritize expansive views and natural light integration without sacrificing functionality, a constant challenge in the past.

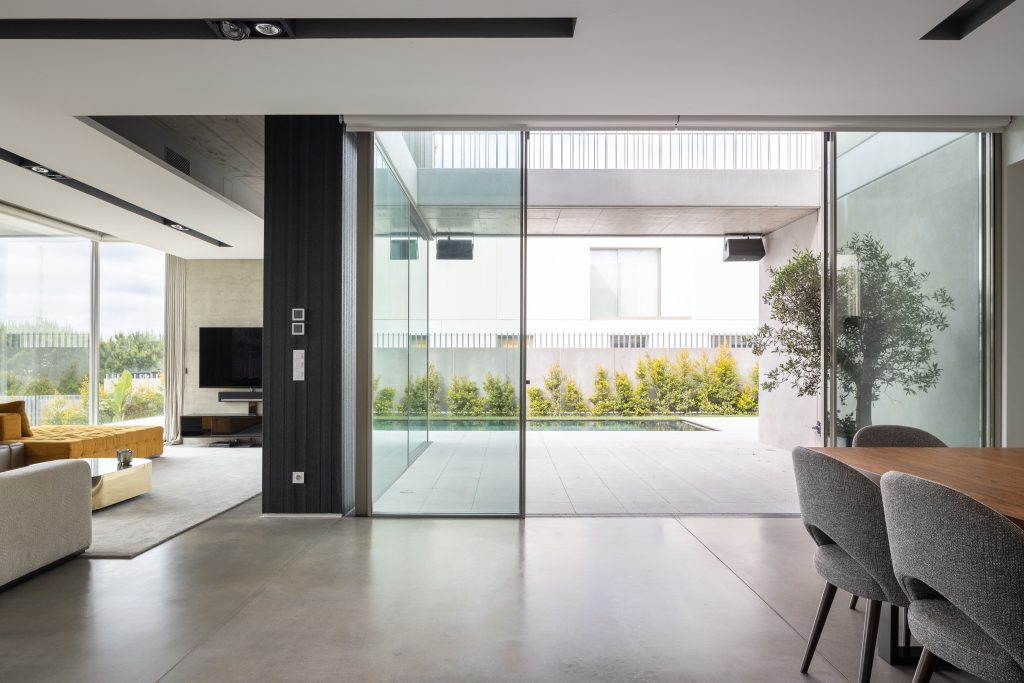

Contemporary living and dining area with large sliding glass doors opening to a patio and pool, blending indoor and outdoor spaces with minimalist design.

© Iwan Baan

OTIIMA understands that every architectural project is unique. Thanks to a wide range of customization options for size, configuration, and finishes, architects can tailor the windows to perfectly complement their vision. Whether designing a minimalist masterpiece or a contemporary space with a touch of warmth, OTIIMA’s windows provide the flexibility to achieve the desired aesthetic.

Architects understand that a one-size-fits-all approach rarely works. Understanding that every space is unique, these custom-made windows offer various options for every project. This level of customization empowers architects to achieve the desired balance of light, view, and functionality within a specific project.

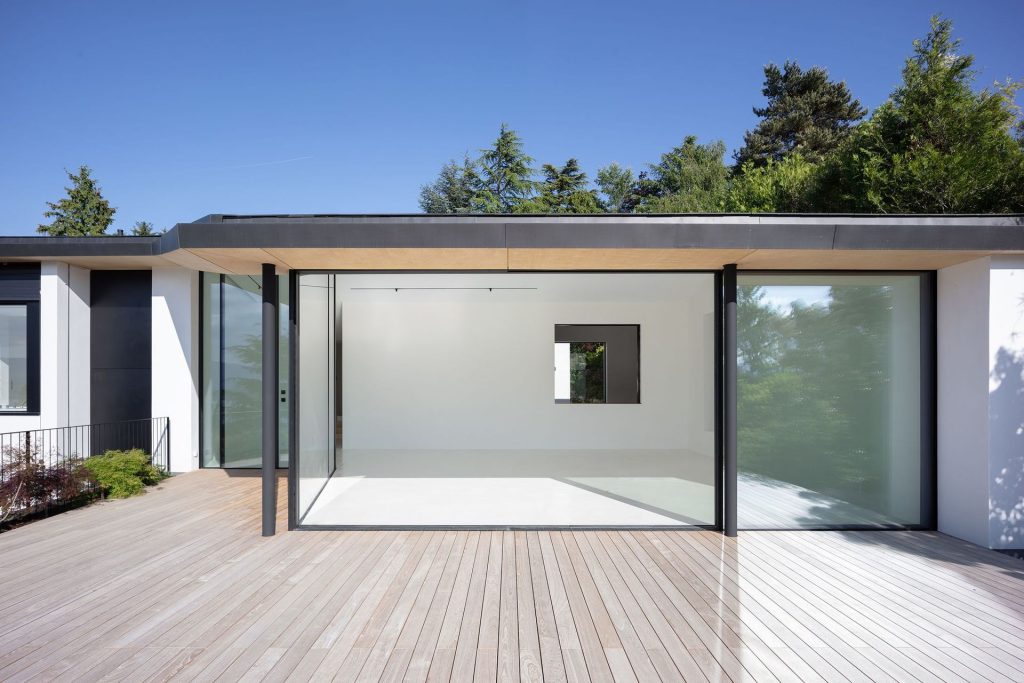

Modern house exterior with sliding glass walls opening to a wooden deck, blending indoor and outdoor living with clean minimalist design.

© Luc Boegly & Sergio Grazia

Minimal frame windows perfectly complement modern architectural styles. Their clean lines and focus on maximizing glass area resonate with the minimalist aesthetic, allowing the surrounding landscape to take centre stage. This creates a seamless connection between the interior and exterior, blurring the lines between built and natural environments.

Compare products

Compare products easily by analyzing features and specifications side by side to find the best option for your needs.

thermal-transmittance

Thermal Transmittance

watertightness

Watertightness

air-permeability

Air permeability

wind-resistance

Wind resistance

resistance

Impact resistance

insulation

Sound insulation

security

Security

thermal-transmittance

Thermal Transmittance

Uw Ug = 1,0 (38mm)
Uw Ug = 0.5 (54mm)

watertightness

Watertightness

ISO EN 12208 + ISO EN 1027

E1200 (54mm)

(4 classes above 9A) 1

air-permeability

Air permeability

ISO EN 12207 + ISO EN 1026

Class 4

(600 Pa or 119 Km/h) 1 2

wind-resistance

Wind resistance

ISO EN 12210 + ISO EN 12211

Class C5

(in 6 possible classes) 2

resistance

Impact resistance

ISO EN 12600 + ISO EN 1630

Class 5

(2000 Pa or 200 Km/h)

insulation

Sound insulation

ISO EN 10140 + ISO EN 717

Rw: 42 db (up to)
security

Security

ISO EN 1628 + ISO EN 1629 + ISO EN 1630

RC2: (WK2)

3

thermal-transmittance

Thermal Transmittance

Uw Ug = 1,0 (38mm)
Uw Ug = 0.5 (54mm)
Uw Ug = 0.47 (62mm)

watertightness

Watertightness

ISO EN 12208 + ISO EN 1027

E1200

(7 classes above 9A) 1

air-permeability

Air permeability

ISO EN 12207 + ISO en 1026

Class 4

(600 Pa or 110 Km/h) 1

wind-resistance

Wind resistance

ISO EN 12210 + ISO EN 12211

Class B5

(2000 Pa or 200 Km/h) 1

resistance

Impact resistance

ISO EN 12600 + ISO EN 1630

Class 5 (38mm / 54mm)

1C1 | 2B2 | 1B1 2 (62mm)

insulation

Sound insulation

ISO EN 10140 + ISO EN 717

Rw: 42 db (up to) (38mm / 54mm)

Rw: 44 db (up to) (62mm)

security

Security

ISO EN 1628 + ISO EN 1629 + ISO EN 1630

RC2: (WK2)

3

thermal-transmittance

Thermal Transmittance

Uw Ug = 1.0 (38mm)
Uw Ug = 0.5 (54mm)

watertightness

Watertightness

ISO EN 12208 + ISO EN 1027

E1650

(7 Clases superior a 9A) 1

air-permeability

Air permeability

ISO EN 12207 + ISO EN 1026

Class 4

(600 Pa or 110 Km/h) 1

wind-resistance

Wind resistance

ISO EN 12210 + ISO EN 12211

Class C5

(2000 Pa or 200 Km/h) 1

resistance

Impact resistance

ISO EN 12600 + ISO EN 1630

Class 5
insulation

Sound insulation

ISO EN 10140 + ISO EN 717

Rw: 42 db (up to)
security

Security

ISO EN 1628 + ISO EN 1629 + ISO EN 1630

RC2: (WK2)

2

thermal-transmittance

Thermal Transmittance

Uw Ug = 0.7 (38mm)
Uw Ug = 0.7 (54mm)

watertightness

Watertightness

ISO EN 12208 + ISO EN 1027

Class 8A

(450 Pa or 95 km/h)

air-permeability

Air permeability

ISO EN 12207 + ISO en 1026

Class 3

(600 Pa or 110 Km/h)

wind-resistance

Wind resistance

ISO EN 12210 + ISO EN 12211

Class C5

(2000 Pa or 200 Km/h)

resistance

Impact resistance

ISO EN 12600 + ISO EN 1630

Class 5

(in 6 possible classes)

insulation

Sound insulation

ISO EN 10140 + ISO EN 717

Rw: 38 db (up to)
security

Security

RC2: (WK2) 2

RC2: (WK2)
